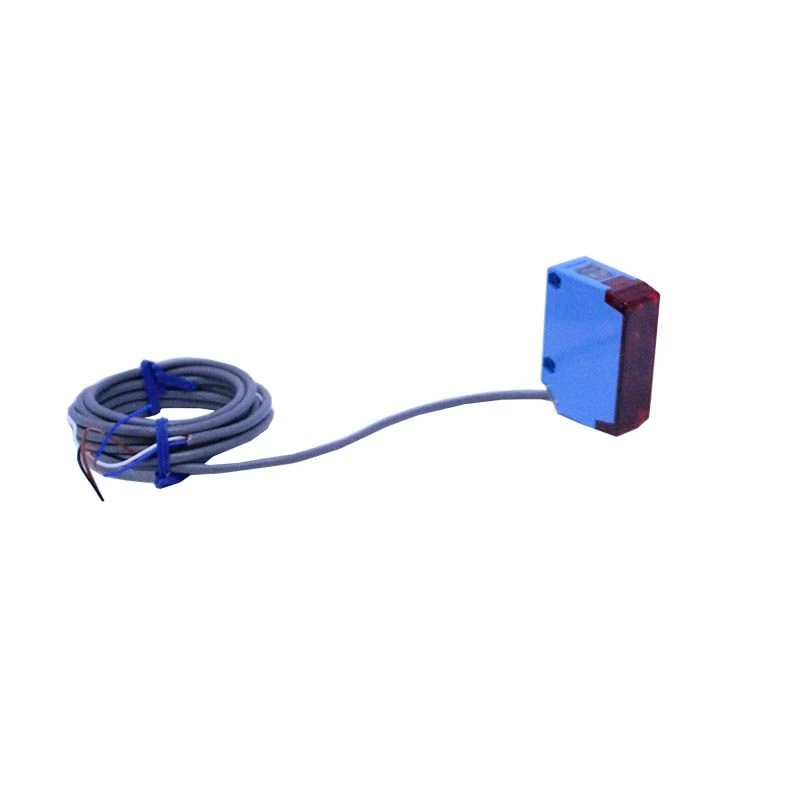

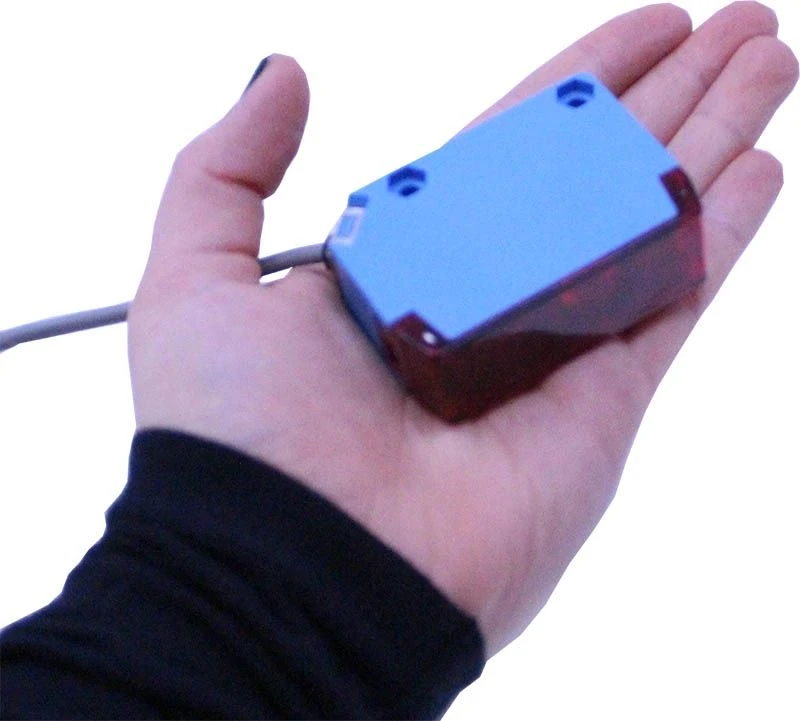

Beam Sensor – Diffused -6′ Range

Diffused Photoelectric Sensor works great with our various controllers. They also work great with other manufacturer’s controllers!

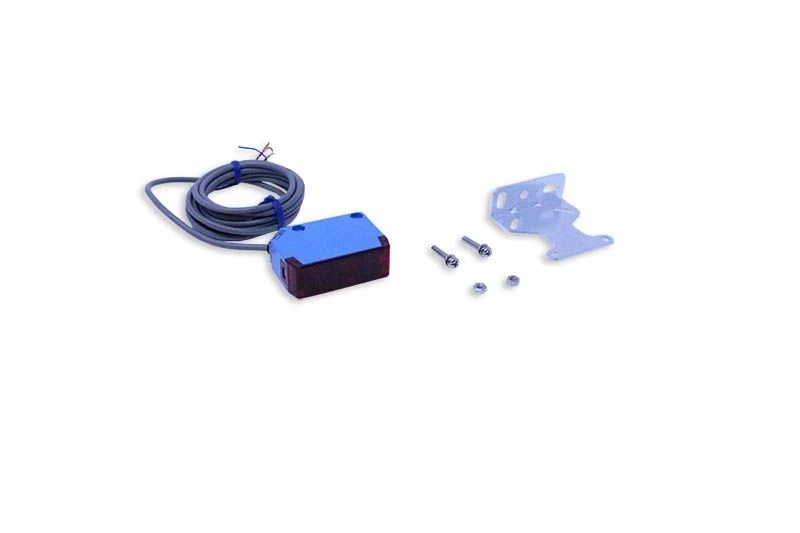

Triggers contact closure for controller activation. Mount this diffused photoelectric beam detector on wall and screw provided 6′ cable into your prop controller or triggerable audio playback unit. When objects or people walk by their body will trigger the controller. Requires a power supply if not used with one of our controllers.

Maximum detection distance is 6 feet. Sensitivity and distance can be adjusted via a small dial on the top of the unit. Turning this dial clockwise increases distance/sensitivity.

• No reflector required
• IP Rating: IP64
• Housing Material: Plastic
• Sensing Method: Diffuse
• Operating Voltage: 10-30 VDC
• Number of Wires: 4
• Switching Output: NPN
• Sensing Distance: 6′
• Sensitivity: Adjustable
• Operation Mode: Selectable light-on/dark-on
• Response Time: Max 1ms
• Current Draw: Max 15mA
• Light emission: Infrared
• Cable Length: 6.5ft

Note: If you will be using this product with one of our PicoBoo or BooBox controller then you do not need the optional power supply.
