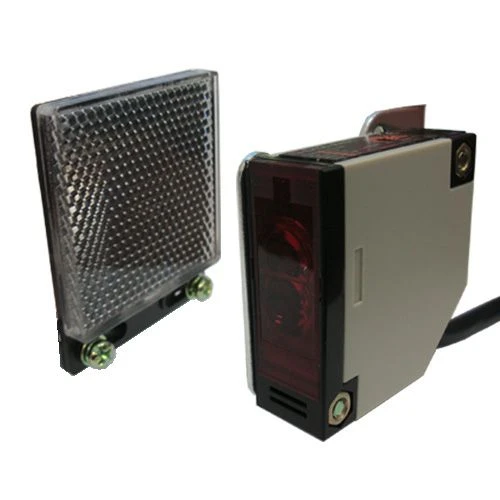

Beam Sensor – Reflective

Our beam sensor works great with our various prop controllers. They also work great with other manufacturer’s controllers! The beam sensor acts as a motion sensor when the invisible beam is crossed.

Triggers contact closure for controller activation. Mount this reflective photoelectric beam detector on wall, mount reflector on opposite wall, screw provided 6′ cable into your prop controller or triggerable audio playback unit. When people walk by their body will trigger the controller. Requires a power supply if not used with one of our controllers.

Maximum distance between beam and reflector is 13 feet.

• Range: 13ft (4m)
• DC 12-30VDC
• Relay contact output: 250VAC 2.5A MAX.
• Light Source: Red LED
• Retroreflective
• Light ON operation
• Pre-wired 6-foot cord
• Bracket and mounting hardware included
• Adjustable sensing distance
• Compact size

Note: If you will be using this product with one of our PicoBoo or BooBox controller then you do not need the optional power supply.
