Precision Z Floodlight

The Precision Z Floodlight produces a soft point-source light equivalent to traditional 20W halogen fixtures in a highly energy and space efficient package. The fixture’s modular design allows it to be swapped with other fixtures without the hassle of cutting wires, allowing for fast design changes and reconfiguration. The industrial machined aluminum chassis gives the Precision Z an elegant form yet functions as a rugged shell and heat sink to protect the LED and core electronics even in outdoor and underwater applications. Internal driver circuitry ensures constant output over a wide range of input voltage and extends the fixture life beyond 50,000 hours.

Features

• Perfect for space constrained applications
• Available in 7 colors: red, green, blue, amber, cool white, and warm white
• 1W LED with 95% energy savings compared to 20W halogen lamp
• Low voltage and minimal heat for improved safety over incandescent sources
• Internal constant current driver gives highly efficient and consistent output
• Dimmable using PWM power input from external constant voltage dimmer (10%-100%)
• Easy installation and reconfiguration
• Dual polarity input
• Minimal maintenance required with over 50,000 hour lamp life
• Indoor and outdoor use

Applications

• Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
• Museums displays (wall mounted artwork and display cases)
• Theater and stage accent lighting
• Mobile displays
• Retail spaces
• Architectural accent lighting
• Machinery

Specifications

Fixture Wattage	1.5W
Input Voltage	9-15VDC (12VDC nomical)
Current Draw	125mA @ 12VDC
Power Supply	for use with class 2 transformer or battery
Beam Angle	62 degrees
Field Angle	84 degrees
Ingress Protection	IP68-3ft
Material	Anodized aluminum
LED	Edison A
Certifications	UL and CE

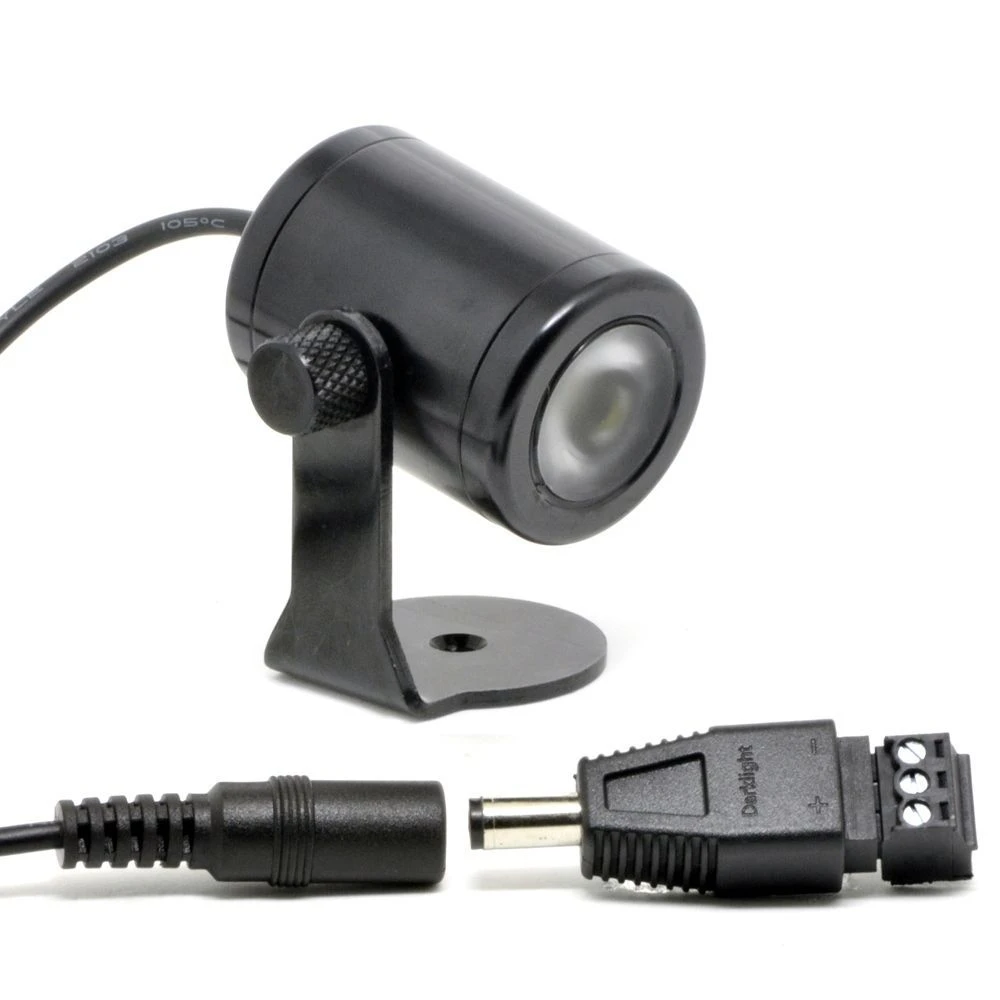

Power Connector	2.1mm DC jack with screw terminal adapter

Product Details

Product Name:	Wavelength	Color Temp	CRI

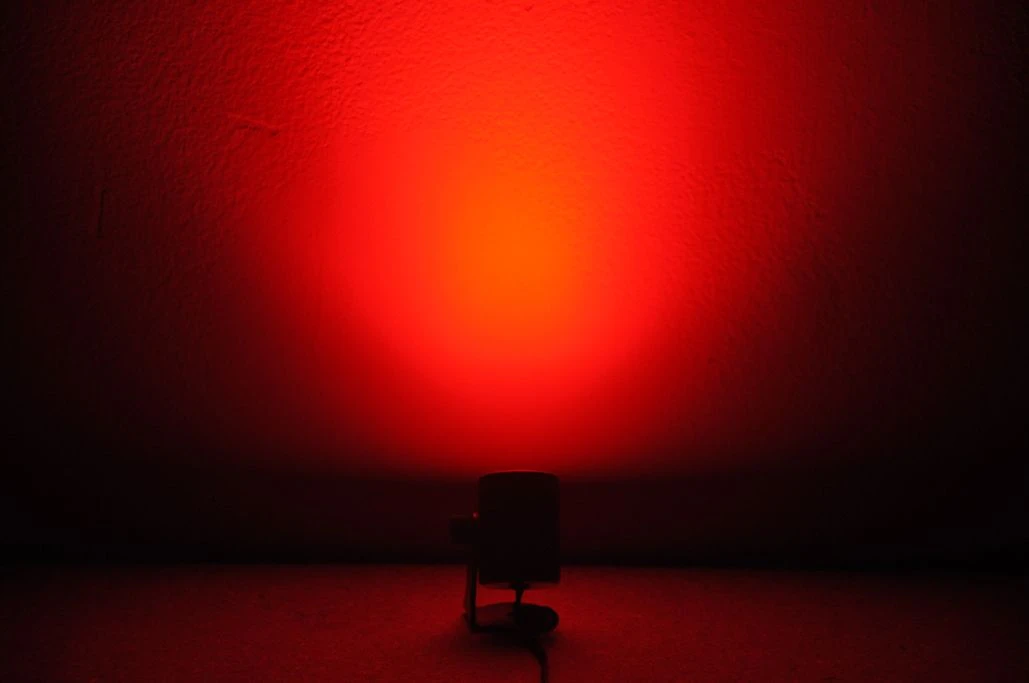

Precision Z Spot – Red	620nm-630nm	/	/

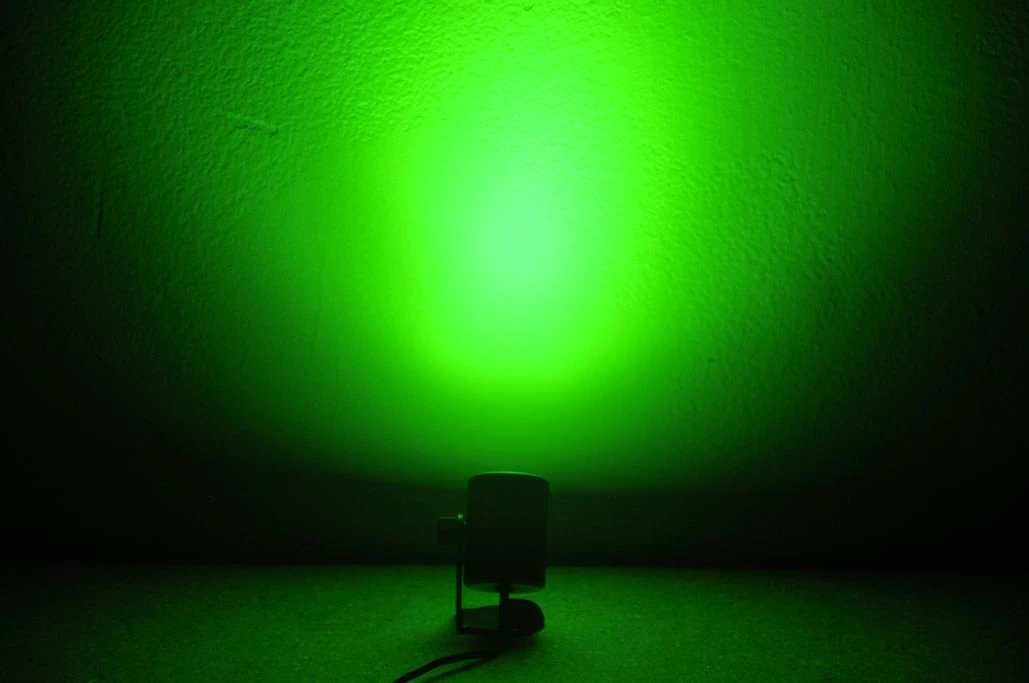

Precision Z Spot – Green	515nm-535nm	/	/

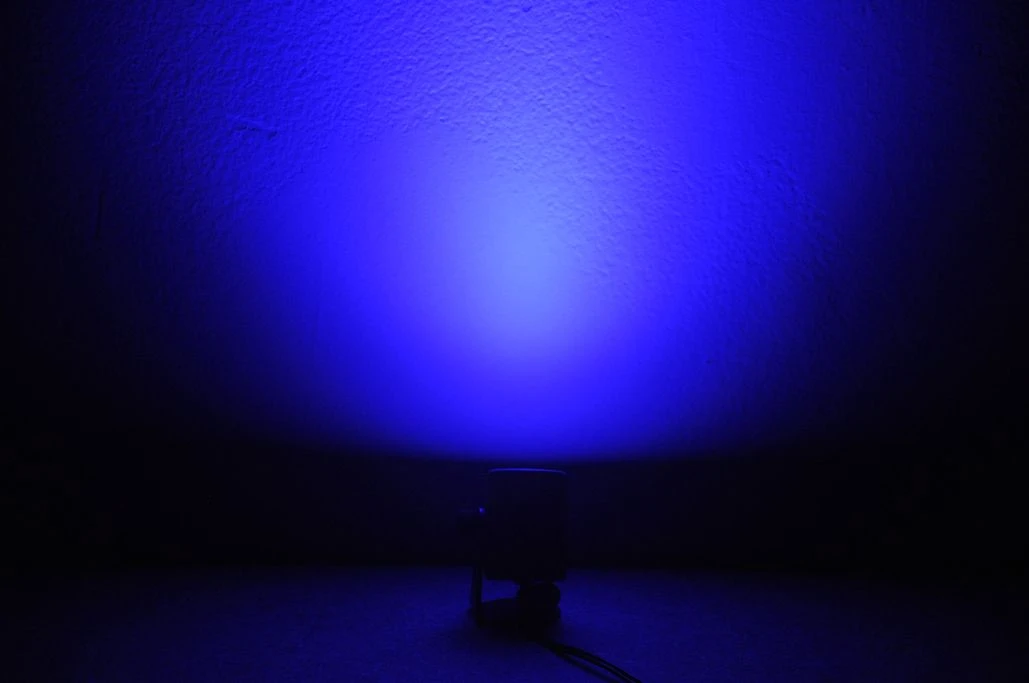

Precision Z Spot – Blue	455nm-475nm	/	/

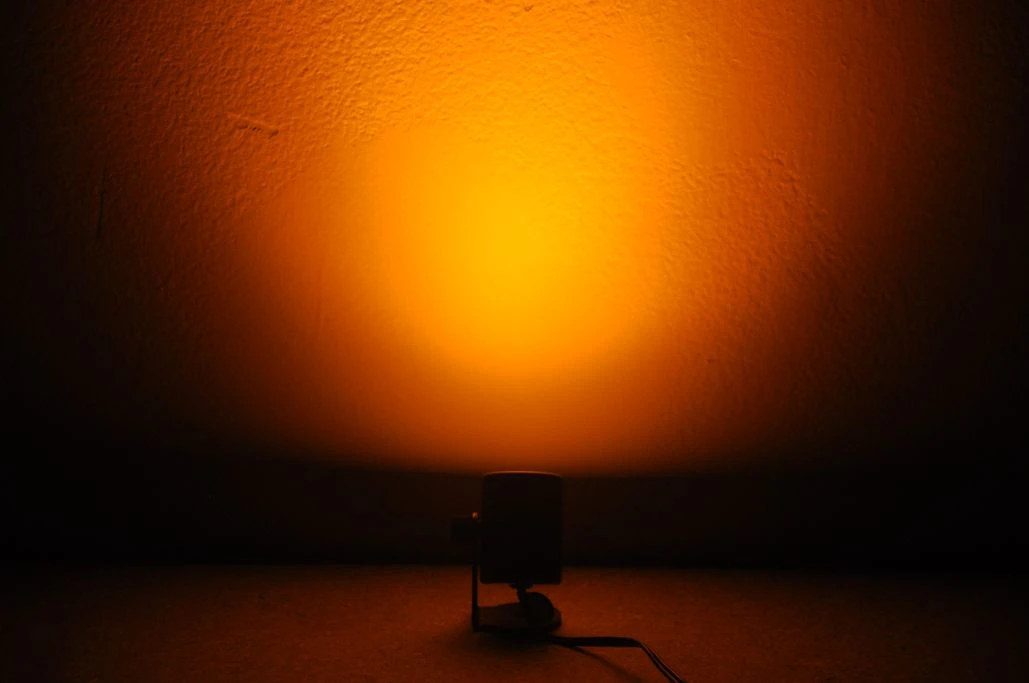

Precision Z Spot – Amber	585nm-595nm	/	/
Precision Z Spot – Cool White	/	6500K	70
Precision Z Spot – Warm White	/	2700K	80 typical, 90+ available by spec

Cool White Output

Distance	Center Beam	Beam Width
1.0m (3.3ft)	66lx (6.1fc)	1.2m (3.9ft)
2.0m (6.6ft)	15lx (1.4fc)	2.4m (7.9ft)
3.0m (9.9ft)	5lx (0.5fc)	3.6m (11.8ft)

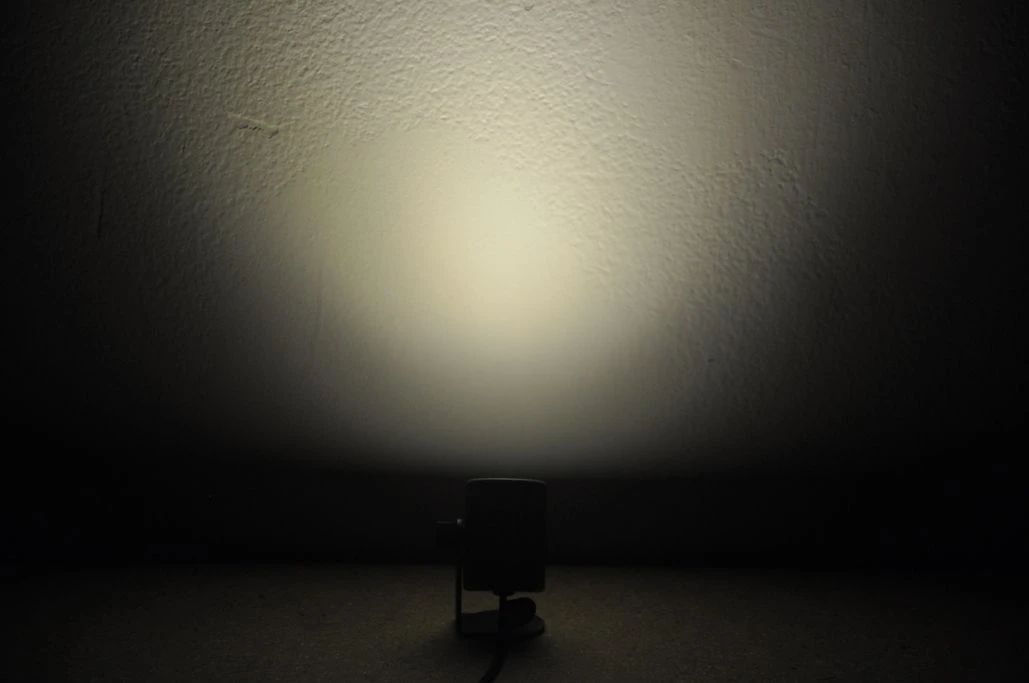

Warm White Output

Distance	Center Beam	Beam Width
1.0m (3.3ft)	35lx (3.3fc)	1.2m (3.9ft)
2.0m (6.6ft)	8lx (0.7fc)	2.4m (7.9ft)
3.0m (9.9ft)	2lx (0.2fc)	3.6m (11.8ft)
