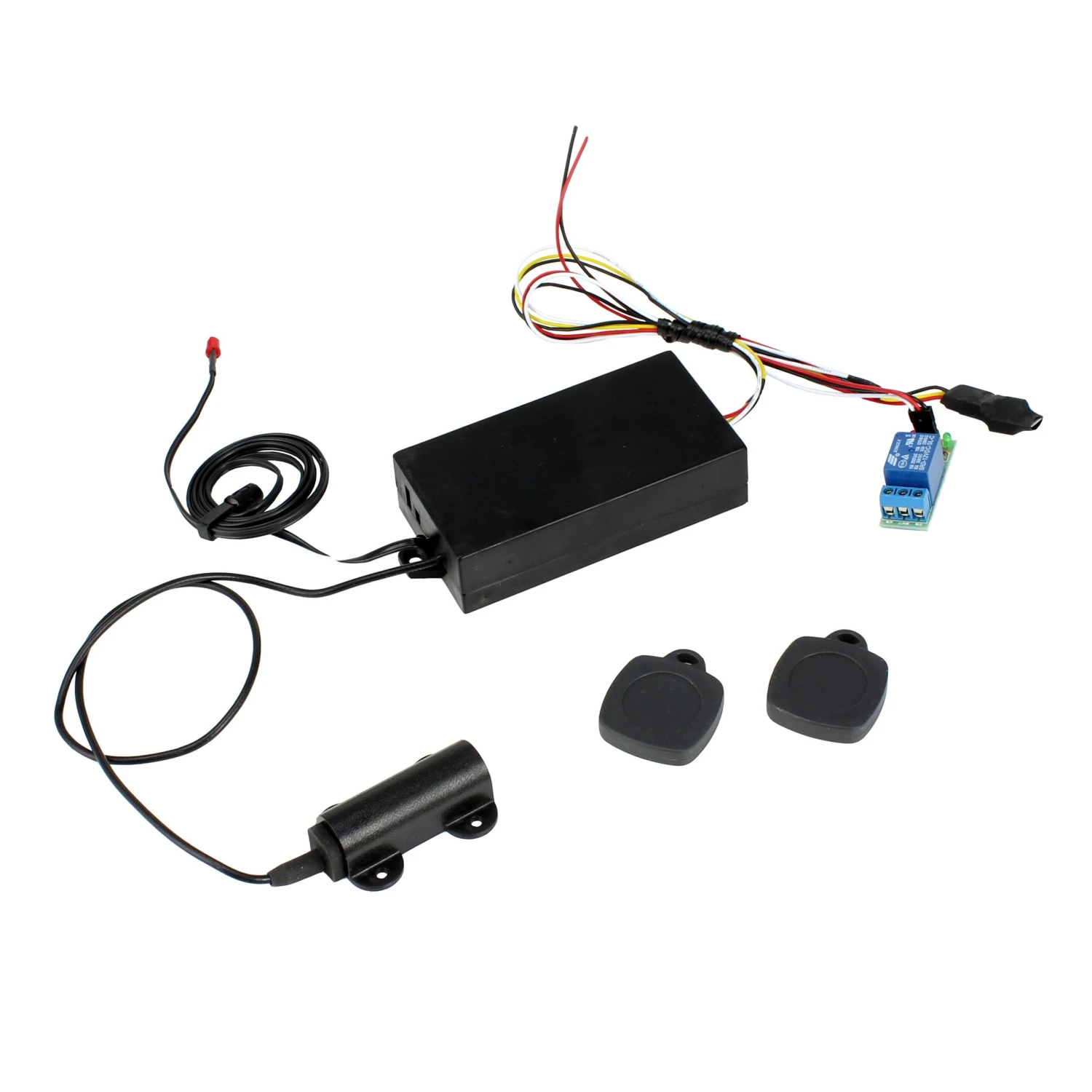

RFID Prop Trigger With Relay

Features:

• RFID unit with relay, two keys and a master key (used to encode additional keys)
• Keys are waterproof and crush-resistant
• Operates on 12v DC
• Operating frequency 125KHz
• Sensor measures 2.1″ x 1.3″ and is attached by a 20″ cable to the receiver box (which measures 4 1/8″ x 2 1/8″
• Sensor can be mounted in wood or behind glass or plastic and will still function perfectly.
• 10 amp relay triggers when unit is activated.
• Sensing range is about 3″
• You can program up to 25 RFID keyfobs per reader
• The RFID control unit consumes approximately 85mA

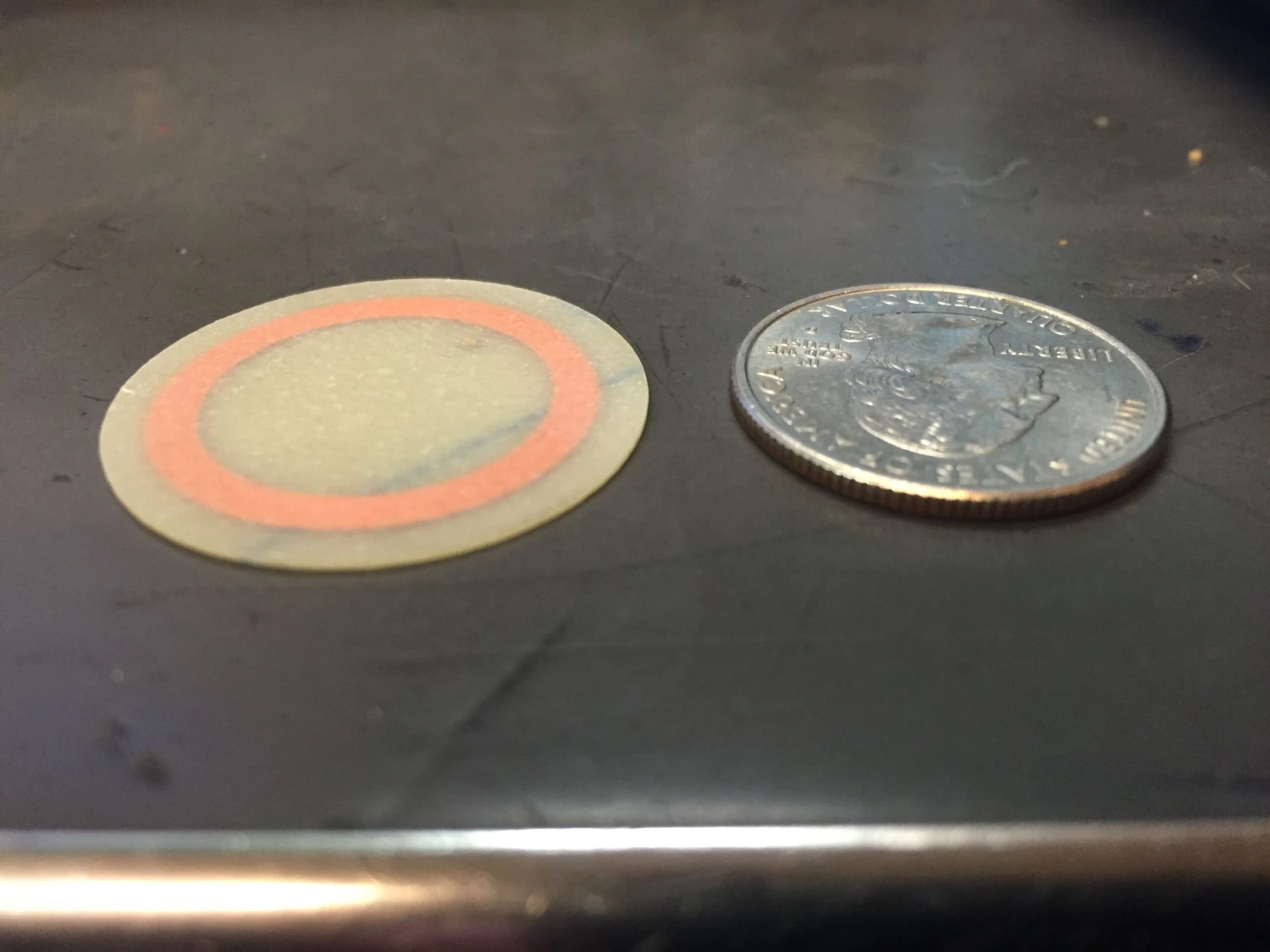

NOTE: The plastic key fobs can be opened to access the discs within. Discs are very small and thin, making them perfect for attaching to props or concealing inside objects!

To Flash New Keys:

1. Make sure the RFID unit is powered on.
2. Make sure the new keys you are using are 125kHZ.
3. Remove the master key from the metal tin.
4. Hold the master key next to the antenna for a few seconds (the antenna is the domed black plastic piece. The top of the dome is where it has the best sensing capabilities).
5. Remove the master key and place your new key near the antenna. Leave it there for 5 seconds.
6. Pull the key away and then bring it back in range of the antenna. The relay should click.
