Wireless Trigger (1-Relay)

The module has one relay (10 amps max) on screw down terminal blocks. PicoBoos, BooBoxs, lights, or any other device that can be triggered from a relay can now be activated wirelessly. Use with all FrightProps controllers and audio players or your own devices with trigger input.

Package Includes:

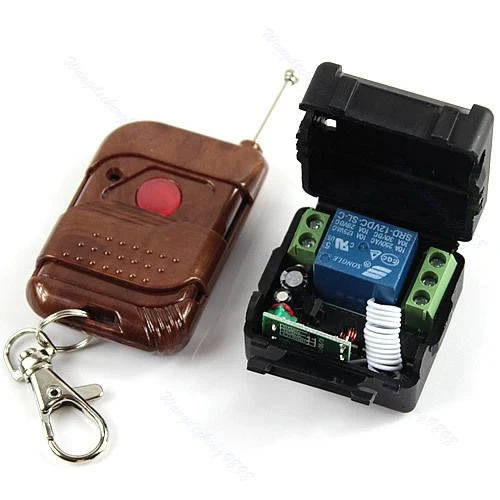

• 1 x Control Switch Board with one 10-amp relay on it
• 1 x Remote Control with one value

Requires a 12VDC Power Supply. If you are powering from another device (such as a PicoBoo) then you will not require one.

Specifications:

• Operating frequency: 315MHz
• Working voltage: DC12V
• Operating current: 8.9Ma
• Receiver sensitivity:-95dB
• Encoding type: pad
• Maximum Load: 10A
• Size: 40mm X 37mm X 25mm(approx)
• Control size: 60x38x18mm(approx)

Please Note:

• Actual antenna range will vary greatly depending on the installation and operating environment
• All units use the same frequency and there is not a way to change that. What this means is that two units cannot be used in the same location and be triggered separately
