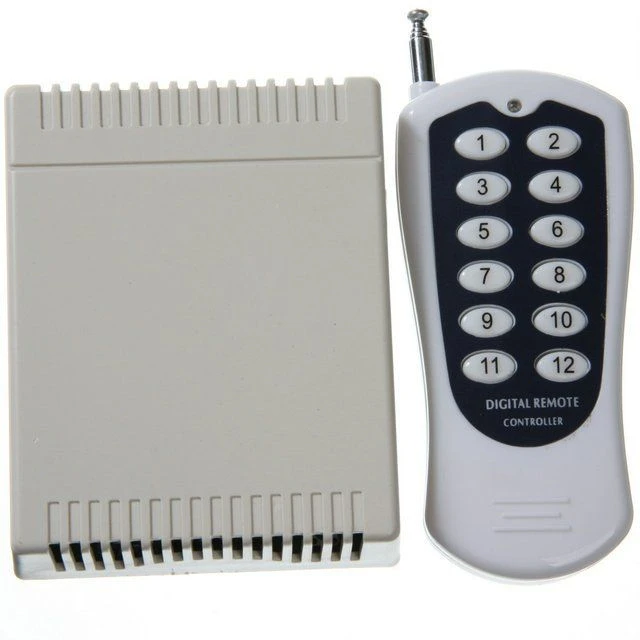

Wireless Trigger (12-Relay)

The module has twelve relays (7 amps max per) on screw down terminal blocks. PicoBoos, BooBoxs, lights, or any other device that can be triggered from a relay can now be activated wirelessly. Use with all FrightProps controllers and audio players or your own devices with trigger input.

Package Includes:

• 1 x Control Switch Board with twelve 7-amp relays on it
• 1 x Remote Control with twelve values

Requires a 12VDC Power Supply. If you are powering from another device (such as a PicoBoo) then you will not require one as you can draw power from that.

Remote Control:

• Operating Voltage: 12V
• Operating Current: ≤10mA
• Frequency: 310MHz, 315MHz, 418MHz, 433MHz
• Transmitting Power: 10mW
• Transmitting Distance: 100M
• Encoding Type: PT2262, EV1527, HCS300 rolling code

• Control Switch System:
• Operating Voltage: DC12V
• Quiescent Current: ≤6mA
• Operating Frequency: 315MHz 433MHz
• Receiver Sensitivity: -105dBm
• Output Current: ≤10A
• Size: 97 x 77 x 26mm / 3.81 x 3.03 x 1.02in(L x W x H)

Please Note:

• Actual antenna range will vary greatly depending on the installation and operating environment
