Wireless Trigger (2-Relay)

The module has two relays (7 amps max per) on screw down terminal blocks. PicoBoos, BooBoxs, lights, or any other device that can be triggered from a relay can now be activated wirelessly. Use with all FrightProps controllers and audio players or your own devices with trigger input.

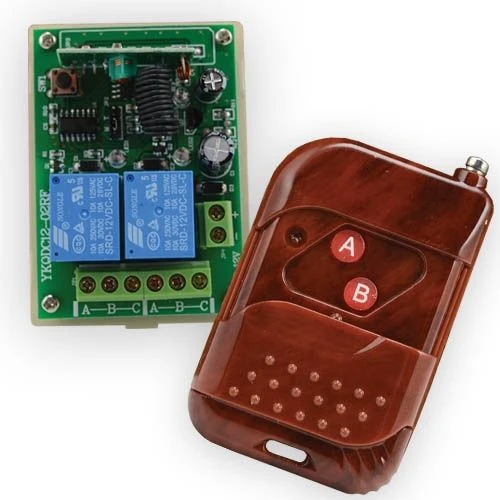

Package Includes:

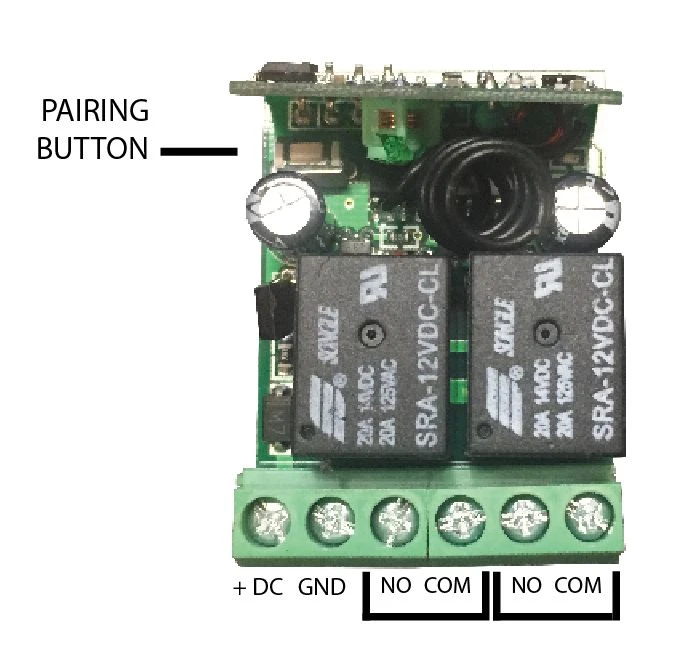

• 1 x Control Switch Board with two 7-amp relays on it
• 1 x Remote Control with two values (red is relay 1, gray is relay 2)

Requires a 12VDC Power Supply. If you are powering from another device (such as a PicoBoo) then you will not require one.

Specifications:

Control Switch Board:

• Operating Voltage: DC 12V
• Max. Load: 7A Per Relay
• Working Frequency: 315MHz / 433MHz
• Encoding Type: Fixed Code
• Output Mode: Two switch signal
• Size: 50 x 70 x 18mm / 1.97 x 2.76 x 0.71 in

Remote Control:

• Working Voltage: DC 12V (23A/12V battery)
• Working Current: 10mA
• Power: 10mW
• Transmission Frequency: 315MHz / 433MHz
• Oscillation Resistance: 4.7MΩ / 3.3MΩ
• Transmission Distance: 650ft / 200m
• Encoding Type: Fixed code

Please Note:

• Actual antenna range will vary greatly depending on the installation and operating environment
• All units use the same frequency and there is not a way to change that. What this means is that two units cannot be used in the same location and be triggered separately
