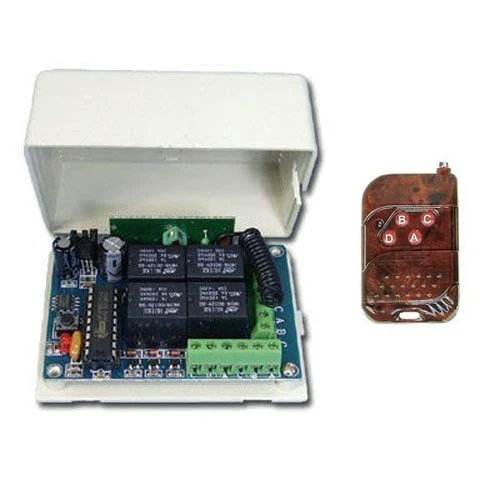

Wireless Trigger (4-Relay)

The module has four relays (7 amps max per) on screw down terminal blocks. PicoBoos, BooBoxs, lights, or any other device that can be triggered from a relay can now be activated wirelessly. Use with all FrightProps controllers and audio players or your own devices with trigger input.

Package Includes:

• 1 x Control Switch Board with four 7-amp relays on it
• 1 x Remote Control with four values

Requires a 12VDC Power Supply. If you are powering from another device (such as a PicoBoo) then you will not require one.

Transmitter:

• Channels: 4CH
• Remote Control Distance: 100m / 300 ft
• Encoding: Fixed code, soldering
• Power Supply: 1 x 23A-12V battery
• Size: 58 x 39 x 16mm

Receiver:

• Channels: 4 CH
• Control Modes: Toggle / Momentary / Latched / Toggle+Momentary
• Decode: Learning code
• Required Power Supply: DC 12V (not included)
• Relays: 10A / 120V AC, 20A /14V DC
• Working Voltage Range of Relay: AC 110-240V or DC 0-28V
• Board Size: 68 x 48 x 20mm
• Static Current: <=6mA
• Working Frequency: 315 MHz

  Please Note:

  • Actual antenna range will vary greatly depending on the installation and operating environment
